Quick Facts

•  Forward/backward curved or airfoil wheel

•  Size from 200 to 1000

•  Capacity up to 120,000 m3/h

•  Static pressure up to 1800 Pa

•  Acoustic lining is available upon request

Quick Facts

•  Forward curved

•  Size from 140 mm to 18 inches

•  Capacity up to 18,000 m3/h

•  Static pressure up to 1,000 Pa

•  Low noise level and easy installation

Quick Facts

•  Size from 200 to 400 mm

•  Capacities to 6840 m3/h

•  Static pressure up to 750 Pa

•  Low noise level and easy installation

Quick Facts

•  Available in direct and belt driven

•  Size from 7 to 18 inches

•  Capacities to 13,000 m3/h

•  Static pressure up to 1600 Pa

Quick Facts

•  Size from 200 to 1000 mm

•  Capacities to 162,000m 3/h

•  Static pressure up to 1800 Pa

•  Internal lining available upon request

Type of fan use: CFT 200 to CFT 710 ---- FDA/BDB/ADA ‘C’ type

CFT 800 to CFT 1000 ---- FDA/BDB/ADA ‘T’ type"

Quick Facts

•  Size from 200 to 1000 mm

•  Suitable for smoke spill application

Motor should be selected to handle air at ambient temperature based on specified air volume & pressure. This is to allow periodic testing of the fan.

Quick Facts

•  Size from 315 to 1400 mm

•  Easy to install.

Dimension

Type of fan used: CPA-T ---- TDA-L; CPA-V ---- TDA-V; CPA-M ---- MXA.

Motor

Totally enclosed Class ‘F’ motor with min. IP55 protection are fitted as standard. Standard motors up to 2.2 kW are usually supplied on DOL starting, motors 3.0 kW and above are star/delta starting.

Airflow Direction

Air flow from impeller to motor (B) is fitted as standard. Air flow from motor to impeller (A) can be supplied upon request.

Others

For smokespill application, please consult the nearest Kruger office for details.

Quick Facts

•  Size from 250 to 800 mm

•  Capacities to 17,100 m3/h

•  Static pressure up to 900 Pa

Quick Facts

•  Size from 20 to 60 inch

•  Capacities 3,000 to 40,000 CFM

•  Static pressure up to 0.625 in Wg

Quick Facts

•  Size from 450 to 2000

•  Capacity up to 430,000 m3/h

•  Static pressure up to 2200 Pa

•  Suitable for clean air normal ventilation and smokespill application.

Operating Temperature

•  Normal Ventilation: -20°C to +55°C

•  High Temperature Application: available up to 300°C/2Hrs.

Motor

Totally enclosed Class 'F' or 'H', with a minimum IP55 protection are fitted as standard. Standard motor up to 2.2kW are supplied with DOL starting, motor 3.0kW and above are with star/delta starting. Motor of other specifications are available upon request.

Quick Facts

•  Size from 450 to 2000

•  Capacity up to 450,000 m3/h

•  Static pressure up to 2,300 Pa

•  Suitable for clean air normal ventilation and smokespill application.

Operating Temperature

•  Normal Ventilation: -20°C to +55°C

•  High Temperature Application: available up to 400°C/2Hrs.

Motor

Totally enclosed Class 'F' or 'H', with a minimum IP55 protection are fitted as standard. Standard motor up to 2.2kW are supplied with DOL starting, motor 3.0kW and above are with star/delta starting. Motor of other specifications are available upon request.

Quick Facts

•  Size from 1250 to 2240

•  Capacity up to 450,000 m3/h

•  Static pressure up to 1,900 Pa

•  Suitable for clean air normal ventilation and smokespill application.

Operating Temperature

•   Normal Ventilation: -20°C to +55°C

•   High Temperature Application: available up to 400°C/2Hrs.

Motor

Totally enclosed Class 'F' or 'H', with a minimum IP55 protection are fitted as standard. Standard motor up to 2.2kW are supplied with DOL starting, motor 3.0kW and above are with star/delta starting. Motor of other specifications are available upon request.

Quick Facts

•  Size from 315 to 2000

•  Capacity up to 360,000 m3/h

•  Static pressure up to 1,000 Pa

•  Suitable for clean air normal ventilation and smokespill application.

Operating Temperature

•   Normal Ventilation: -20°C to +55°C

•   High Temperature Application: available up to 400°C/2Hrs.

Motor

Totally enclosed Class 'F' or 'H', with a minimum IP55 protection are fitted as standard. Standard motor up to 2.2kW are supplied with DOL starting, motor 3.0kW and above are with star/delta starting. Motor of other specifications are available upon request.

Quick Facts

•  Size from 315 to 2000 mm

•  Capacity up to 300,000 m3/h

•  Static pressure up to 1300 Pa

•  High efficiency and pressure

•  Suitable for clean air normal ventilation and smokespill application.

Operating Temperature

•  Normal Ventilation: -20°C to +55°C

•  High Temperature Application: available up to 400°C/2Hrs.

Motor

Totally enclosed Class 'F' or 'H', with a minimum IP55 protection are fitted as standard. Standard motor up to 2.2kW are supplied with DOL starting, motor 3.0kW and above are with star/delta starting. Motor of other specifications are available upon request.

Quick Facts

•  Size from 315 to 2000 mm

•  Capacity up to 315,000 m3/h

•  Static pressure up to 1000 Pa

Operating Temperature

•  Normal Ventilation: -20°C to +85°C.

Motor

Total Enclosed Fan Cooled (TEFC), Class “F”, IP54 protection. Standard motors up to 2.2kW are supplied with DOL starting. Motors 3.0kW and above are with star/delta starting. Motors of other specification are available upon request.

Quick Facts

•  Size from 400 to 1400 mm

•  Capacity up to 140,000 m3/h

•  Static pressure up to 1000 Pa

•  Suitable for general ventilation, kitchen exhaust and removal of contaminated air.

Operating Temperature

•  Normal Ventilation: -20°C to +180°C.

Motor

Totally enclosed Class 'F', with a minimum IP54 protection are fitted as standard. Standard motor up to 2.2kW are supplied with DOL starting, motor 3.0kW and above are with star/delta starting. Motor of other specifications are available upon request.

Quick Facts

•  Size from 315 to 1000

•  Capacity up to 60,000m3/h

•  Static pressure up to 360 Pa

Operating Temperature

Normal Ventilation: -20°C to +55°C

Motor

Totally enclosed Class 'F', with a minimum IP54 protection are fitted as standard. Standard motor up to 2.2kW are supplied with DOL starting, motor 3.0kW and above are with star/delta starting. Motor of other specifications are available upon request.

Quick Facts

•  Size from 315 to 1000

•  Capacity up to 24,000 m3/h

•  Static pressure up to 185 Pa

•  Low noise level with high efficiency

Quick Facts

•  Size from 100 to 315 mm

•  Capacities to 1700 m3/h

•  Static pressure up to 1000 Pa

•  Can be mounted in any position

Operating Temperature

- 40degC to +40degC

Motor

Enclosed, single phase, 230V, 50/60Hz external rotor type, motors included sealed for life ball bearing assemblies and Class B, IP44 protection with an internal automatic reset safety thermal overload protection device as standard.

Quick Facts

•  Size from 100 to 600 mm

•  Capacities to 600 m3/h

•  Static pressure up to 250 Pa

•  High performance with low noise level

Quick Facts

•  Suitable for ducted ventilation system

•  Size from 100 to 315 mm

•  Capacities to 1800 m3/h

•  Easy Installation and maintenance

Operating Temperature

Maximum operating temperature +40 degC

Motor

MTD Series fans are fitted with direct connection two speed motors as standard with thermal over load protection. All motors are suitable for speed control regulation using electronic or auto-transformer.

Quick Facts

•  Suitable for use in small room ventilation

•  Size from 100 to 300 mm

•  Capacities up to 250 m3/h

•  Easy mounting and compact design

Operating Temperature

Maximum operating temperature +40degC

Motor

All motors are single phase, shaded pole, 230V, 50Hz fitted with internal thermal protection devise to protect against abnormal overheating.

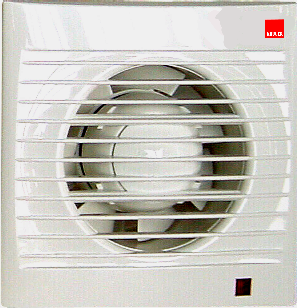

Quick Facts

•  Suitable for wall or panel mounting

•  Size from 200 to 355 mm

•  Capacities to 1800 m3/h

•  Easy mounting and compact design

Operating Temperature

Maximum operating temperature +40degC

Motor

All models incorporate shaded pole motors with safety thermal overload fuse.

Quick Facts

•  Suitable for ducted ventilation system

•  Size from 100 to 315

•  Capacity up to 1877 m3/h

•  High performance with significant noise reduction

Motors

MTD Silent 100/2~200/2

•  Speed controllable 230V -50HZ motor, of two speed motors. IP 44.

•  Motors are Class B, with ball bearings and safety thermal overload protection.

MTD Silent 250~315

•  IP 44. External terminal box IP 55.

•  Removable fan body with two speed motor, single phase 230V-50/60 Hz speed controllable, Class F, external rotor aluminium motor with capacitor and thermal protection.

Additional Information

The models offer solutions to ventilation problems, especially in places where people work and low sound level is required.

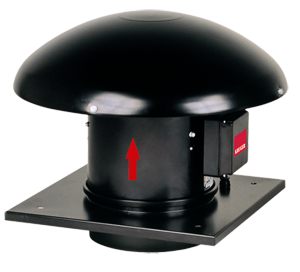

Quick Facts

•  The air outlet consists of horizontal and vertical directions

•  Size from 400 to 1000 mm

•  Capacities to 43, 000 m3/h

•  Total pressure up to 800 Pa

•  Low noise level and easy installation

Application

It is specially designed for roof exhaust, installed vertically, and the airflow is vertical and radiant.

Finish

Painting or galvanised after manufacture are normal finishes on all parts.

Operating Temperature

-20deg.C to +80deg.C

Motor

Fully enclosed motor, insulation grade Class 'F', protection grade not lower than IP54. When the power of the three-phase motor is below 2.2kW, the direct start mode is adopted, and when the power of the three-phase motor is above 3.0kW, the star-delta conversion start is adopted.

Quick Facts

•  Size from 160 to 315 mm

•  Capacities to 1725 m3/h

•  Static pressure up to 600 Pa

•  Suitable for industrial, commercial and institutional ventilation

Quick Facts

•  Size from 140 to 630 mm

•  Capacities to 19500 m3/h

•  Suitable for smoke exhaust application (400°C/2hours)

•  Suitable for industrial, commercial and institutional ventilation

Operating Temperature

-40°C to +120°C.

Motor

• Asynchronous induction motors with squirrel cage rotor in diecast aluminum, IP55 protection with class F insulation.

• Available for single phase and three phase electrical supplier.

Quick Facts

•  Size from 315 to 1400 mm

   (Size 1600 to 2000 mm available upon request)

•  Capacities to 680,000 m3/h

•  Total pressure up to 4500 Pa

•  High efficiency and low noise

Application

For supply or exhaust application in commercial, institutions and industrial HVAC systems.

Testing

Both air and sound performance ratings are test in accordance to AMCA210 and AMCA300 Standards. All wheels are statically and dynamically balanced to ISO1940 and AMCA204 - G2.5 Standards.

 Quick Facts

•  Size from 315 to 1800

•  Capacity up to 400,000 m3/h

•  Total pressure up to 5800 Pa

•  Suitable to use in AHU and clean room

Quick Facts

•  Available backward curved wheel

•  Size from 315 to 1400mm

•  Capacities to 170,000 m3/h

•  Static pressure up to 2600 Pa

•  Suitable to use for AHU and clean room

Application

For supply or exhaust application in commercial, institutions and industrial HVAC systems.

Testing

•  Both air and sound performance ratings are test in accordance to AMCA210 and AMCA300 Standards.

•  All wheels are statically and dynamically balanced to ISO1940 and AMCA204/3 - G2.5 Standards.

Quick Facts

•  Size from 315 to 1400 mm

•  Capacities to 350,000 m3/h

•  Total pressure up to 4500 Pa

•  High efficiency and low noise

Application

For supply or exhaust application in commercial, institutions and industrial HVAC systems.

Testing

Both air and sound performance ratings are test in accordance to AMCA210 and AMCA300 Standards.

All wheels are statically and dynamically balanced to ISO1940 and AMCA204 - G2.5 Standards.

Quick Facts

•  Size from 160 to 1400 mm

•  Capacities to 300,000 m3/h

•  Total pressure up to 2400 Pa

•  Suitable for use in AHU, packaged unit and ventilation

Application

For supply or exhaust application in commercial, institutions and industrial HVAC systems.

Testing

Both air and sound performance ratings are based on test to AMCA210-85 and AMCA300-95 Standards.

All wheels are statically and dynamically balanced to ISO1940 and AMCA204 - G2.5 Standards.

 Quick Facts

•  Size from 200 to 2000 mm

   (Size 1600 to 2000 mm available upon request)

•  Capacities to 360,000 m3/h

•  Total pressure up to 4500 Pa

•  Suitable for ventilation and smokespill application

   (Tested accordance with BS7346: Part2: 1990, class B, C and D performance criteria)

Application

For supply or exhaust application in commercial, institutions and industrial buildings.

Testing

Both air and sound performance ratings are based on test to AMCA210 and AMCA300 Standards.

All wheels are statically and dynamically balanced to ISO1940 and AMCA204 - G2.5 Standards.

Quick Facts

•  Size from 315 to 1400 mm

•  Capacities to 180,000 m3/h

•  Total pressure up to 4500 Pa

•  High efficiency and low noise

Application

For supply or exhaust application in commercial, institutions and industrial buildings.

Testing

Both air and sound performance ratings are based on test to AMCA210 and AMCA300 Standards.

All wheels are statically and dynamically balanced to ISO1940 and AMCA204 - G2.5 Standards.

Quick Facts

•  Size from 200 to 1400 mm

•  Capacities to 120,000 m3/h

•  Total pressure up to 2200 Pa

•  Suitable for ventilation application

Application

For supply or exhaust application in commercial, industrial buildings.

Testing

Both air and sound performance ratings are based on test to AMCA210 and AMCA300 Standards.

All wheels are statically and dynamically balanced to ISO1940 and AMCA204 - G2.5 Standards.

Quick Facts

•  Size from 7 to 18 inches

•  Capacities to 25,000 m3/h

•  Total pressure up to 1700 Pa

•  Suitable for use in packaged unit, AHU, clean room and ventilation

Application

For supply or exhaust application in commercial, institutions and industrial HVAC systems.

Testing

Both air and sound performance ratings are based on test to AMCA210 and AMCA300 Standards.

All wheels are statically and dynamically balanced to ISO1940 and AMCA204 - G2.5 Standards.

Quick Facts

•  Direct driven type

•  Size from 7 to 12 inches

•  Capacities to 5000 m3/h

•  Static pressure up to 450 Pa

•  Suitable to use in clean room

Quick Facts

•  Size from 140 to 355mm

•  Capacities to 8300 m3/h

•  Static pressure up to 1450 Pa

•  Suitable for many applications where the extraction of a corrosive atmosphere.

Application

For many special applications where the extraction of a corrosive atmosphere is required.

For example:

Sulphuric acid, Sulphirous acid, Nitric acid, Nitrous acid, Hydrofluoric acid, Boris acid, Hydrocyanic acid, Hydrochloric acid, Ammonia, Soda, Ethanol, Potassium hydroxide, Methanol, Propane, Formol, Benzene, Formaldehyde.

Quick Facts

•  Size from 315 to 1400mm

•  Capacities to 150,000 m3/h

•  Total pressure up to 2500 Pa

•  Used within a chamber for ovens, dryers, kilns a cold room

Quick Facts

•  Size from 450 to 2000

•  Capacity up to 380,000 m3/h

•  Static pressure up to 2300 Pa

•  High efficiency & low noise

•  Suitable for ventilation and smokespill application

Motor

Totally enclosed class F motor, to a min. IP54 protection are fitted as standard.

Standard motor up to 2.2kW are using supplied on DOL starting. Motor 3.0kW and above star/delta starting.

Quick Facts

•  Size from  560 to 1600 mm diameter

•  Thrust Force Up to 3000 N

•  Thrust Efficiency Up to 37 N/kW

•  Unidirectional and 100% Truly Reversible

•  Casings are Steel Hot Dip Galvanized as per ASTM A123

•  Blades are X-Ray Test as per ASTM E155

•  Performance Tested as per AMCA 250 and 300

•  High Temperature Certified by TUV SUD as per EN 12101

Quick Facts

•  Provides a constant air renewal and heat recovery in houses

•  Capacity up to 400m3/h

•  Thermal efficiency up to 72%

Quick Facts

•  Very high efficiency counter cross flow heat exchanger with efficiency from 90% to 97%

•  High efficiency fans with DC motors

•  Capacity up to 275m3/h

Quick Facts

 •  Module 400-150 to 600-600

 •  Insertion Loss Up to 50 dB

 •  Performance Tested as per ISO 7235

 •  High Temperature Test as per EN 12101

Quick Facts

 •  Size from 315 to 2000

 •  Insertion loss up to 30dB

 •  Non-standard sizes can also be supplied upon request.

 •  For performance requirement, no longer is there the need to produce lengthy acoustic calculations. The unique Kruger sound design system does this for you by means of an electronic noise calculation system. For details, please contact the Kruger technical design office.

Quick Facts

•  Steel Spring

•  Neoprene Base

•  Deflection type 25 to 50mm

•  Rated load up to 630 kg

Quick Facts

•  Loading ability up to 5.0 A

•  Alternating current control output rated from AC210V~AV230V

Quick Facts

•  Backward curved wheel

•  Size from 315 to 1000 mm.

•  Capacity up to 120,000 m3/h

•  Static pressure up to 1500 Pa

• Compact cabinet suitable for clean air standard ventilation and high temperature smokespill application (up to 400°C/2Hours) which it is available with insulation class F motor

Quick Facts

•  Size from 315 to 2,000

•  Capacity up to 230,000 m3/h

•  Static pressure up to 2000 Pa

•  Energy Efficient, Powerful and Low Noise

•  Compact size and Versatile design

•  Suitable for clean air standard ventilation, commercial kitchen (grease laden air) (up to 205°C) and high temperature smokespill application (up to 400°C/2Hours)

Quick Facts

•  Backward curved

•  Size from 315 to 800

•  Capacity up to 30,000 m3/h

•  Static pressure up to 1,000 Pa

•  Compact cabinet, easy to installation and service. suitable for clean air

Airstream operating temperatures

•  Clean air standard ventilation application -20°C to +55°C.

•  Kitchen (grease laden air) application up to +205°C / 400°F.

•  High temperature smokespill application up to 400°C/2Hrs certified.

Motor

All CFC Series fans are supplied with a wide variety of both 1PH and 3PH AC, PM and EC, standard and high temperature rated motors.

Quick Facts

•  Size from 1120 to 3150 mm diameter

•  Air Volume Up to 250 cms

•  Static Pressure Up to 5000 Pa

•  Unidirectional and 100% Truly Reversible

•  Casings are Steel Hot Dip Galvanized as per ASTM A123

•  Blades are X-Ray Test as per ASTM E155

•  Performance Tested as per AMCA 210 and 300

•  High Temperature Certified by TUV SUD as per EN 12101

Quick Facts

•  Size from 200 to 355

•  Capacity up to 3240 m3/h

•  Outlet velocity up to 18.3 m/s

Quick Facts

 •  Size from 225 to 250

 •  Capacity up to 2900 m3/h

 •  Outlet velocity up to 21.2 m/s

Quick Facts

 •  Size from 50 to 100

 •  Capacity up to 11,100 m3/h

 •  Thrust force up to 97N

 •  Outlet velocity up to 26.2 m/s

 •  Suitable for ventilation and smokespill application

 Operating Temperature

 •  General ventilation: -20°C to +55°C.

 •  Smoke exhaust system: 200°C, 250°C, 300°C or 400°C - 2 hrs

Motor

•   General Ventilation

All motors are IP55, Class F insulation, Totally Enclosed Non-Ventilated (TENV).

•   Smoke Exhaust System

All motors are IP55, Class H insulation, Totally Enclosed Non-Ventilated (TENV) High Temperature Rated Motor (200°C, 250°C, 300°C or 400°C - 2 hrs, TUV SUD PSB certified). 60 Hz motor is available upon request.

Quick Facts

 •  Size from 315 to 450

 •  Capacity up to 13,500 m3/h

 •  Thrust force up to 108 N

 •  Uni-directional fan. Reversible fan is available upon request.

 •  Suitable for ventilation and smokespill application

Quick Facts

•  Size from 315 to 1000 mm

•  Capacities to 47000 m3/h

•  Static pressure up to 310 Pa

•  Suitable for industrial, commercial and institutional ventilation

Quick Facts

•  Size from 400 to 1400 mm

•  Capacities to 150000 m3/h

•  Total pressure up to 1000 Pa

•  Easy Installation

Finish

Painting or galvanised after manufacture are normal finishes on all parts.

Operating Temperature

-20deg.C to +55deg.C

Motor

Totally enclosed Class F motor, to a min. IP54 protection are fitted as standard. Standard motor up to 2.2kW are usually supplied on DOL starting, motor 3.0kW and above are star/delta starting.

Quick Facts

•  Size from 315 to 1000

•  Capacity up to 40,000 m3/h

•  Static pressure up to 600 Pa

•  Suitable for industrial, commercial and institutional ventilation

Quick Facts

 •  Size 100 to 560

 •  Capacities up to 325CMH for AC motor models and 560CMH for EC motor models

 •  Static pressure up to 150Pa for AC motor models and 210Pa for EC motor models

 •  AMCA certified air and sound performance

 •  Energy saving high efficiency

 •  Ultra low noise

TDP-S

Pressure sensor.

TDP-D

Pressure sensor, with display.

TDP-PI

Pressure sensor with display and integral proportional control by set point. Direct control output signal for ECOWATT EC fans or Ecowatt Drive frequency inverters.

Main Features:

• 4 Working Modes:

- Relay Output and Modbus Communication (Read).

- 0-10V Output and Modbus Communication (Read).

- 2-10V Output and Modbus Communication (Read).

- Full Modbus Communication Control (Read & Edit).

• Adjustable Set Point.

• IAQ Level Indicator (3-LED Light Diffuser).

• Adjustable 3-LED Light Diffuser Intensity.

• Input Power:  24Vac or 24Vdc, 5W

• Output: 0-10V Output

• Co2 Detection Range:  0-2000pm

• Temperature Detection Range:  0-50°C

• Humidity Detection Range:  0-100%RH

There are three basic modes of operation:

1. Integral proportional control at constant pressure.

2. Proportional control with maximum demand criteria with multiple sensor input: temperature, CO2 and relative humidity.

3. Minimum-maximum control with three-sensor input: CO2, temperature, relative humidity or presence detectors (PIR).

DC signal output of 1-10 V or signal output for AC voltage variation for single phase motors at 230 V.

ECOWATT AC CONTROL: for single phase ventilation units.

ECOWATT DC CONTROL: for DC ventilation units.

Power Supply:

- AC model: 1~230 V.

- DC model: 1~230 V or 24 VDC.

Quick Facts

 •  Size eBNC 315 to eBNC 630

 •  High static pressure up to 1500Pa on eBNC 315/355

 •  Aluminium wheel with backward curved blade.

 •  3-phase EC motor with IE4 efficiency.

 •  Maximum power input from 1.85 kW to 3.30 kW

 •  AMCA certified air, sound performance & FEI

 •  Energy saving high efficiency

 •  Speed control via 0-10V or 4-20mA speed regulation and MODBUS over RS485 serial connection.

 •  Simple, easy to handle, light and compact.

Quick Facts

 • Size CFF 500

 • Available with HEPA and Medium filter options

 • Capacities up to 709CMH

 • Static pressure up to 670Pa

 • Vertical and horizontal types to suit different application needs

•  Suitable for commercial building such as shopping mall, office, hotel, hospital, classroom, etc.

•  Operating Temperature: -20°C to +55°C

Quick Facts

 • Size 800 to 1250mm

 • Capacities up to 40,000CMH

 • Static pressure up to 280Pa

 • Standard Three Phase, 50Hz, and 380V AC motors

 •  Suitable for warehouses, industrial buildings, greenhouses, commercial buildings, and agricultural area.

 •  Operating Temperature: -20°C to +55°C

Quick Facts

 • Available in 3 sizes, 315, 500 and 630mm

 • Capacities up to 9,715CMH

 • Static pressure up to 200Pa

 • Standard Single Phase, 50Hz, and 230V motors

 •  Suitable for greenhouses, swine farms, cow farms and corrals.

 •  Operating Temperature: -20°C to +55°C

Quick Facts

 • Available in single size 500mm

 • Capacities up to 5,180CMH

 • Static pressure up to 200Pa

 • Standard Three Phase, 50Hz, and 380V AC motors

 •  Suitable for greenhouses ventilation.

 •  Operating Temperature: -20°C to +55°C
